Autogrip Power Chuck
We offer a complete power chuck product line including 3 jaw power chucks and 4 jaw power chuck in open-center (with through-hole) or close-center (without through-hole). The jaw-type power chucks are the most commonly seen work holding device on a modern CNC lathe. The hydraulic power chuck is installed onto the spindle and is actuated by a rear hydraulic cylinder to grip or to release the work part. 3 jaw power chuck is the most popular model for round work part work holding. 2 jaw power chuck and 4 jaw power chucks are used to grip work part with irregular out shape. Besides the standard product line, we also offer special power chuck such as long stoke power chuck, power chuck with extra-large through-hole, power chuck with extra diameter, power chuck for vertical turning process. The listed products are made by Taiwan Top suppliers. Most of our power chucks are inter-changeable with Kitagawa power chuck or Rohm power chuck in installation and performance.
Contact us via Email: sales@mta-direct.com
Almost all sizes of Strong power chucks and cylinders are in stock,
especially for power chucks in 4, 5, 6, 10, 12, 15 inch diameter and their corresponding hydraulic cylinders.
Power Chuck Selection Guide
Model | Jaw Numbers | Through Hole | Special Features |
3H | 3 Jaws | Yes | Extra Large Bore |
3P | 3 Jaws | No | Standard Design |
2H | 2 Jaws | Yes | Standard Design |
2P | 2 Jaws | No | Standard Design |
4H | 4 Jaws | Yes | Standard Design |
3L | 3 Jaws | Yes | Extra Long Jaw Stroke - Crank Style |
3M | 3 Jaws | No | Extra Long Jaw Stroke |
Cylinder Selection Guide
Model | Fluid | Through Hole | Features |
TK | Hydraulic | Extra Large | Standard Model / built-in check valve |
RH | Hydraulic | No | Standard Model / with no Safety Valve |
RA | Pneumatic | No | Standard Model / with no Safety Valve |
Autogrip Power Chuck includes the following Product Series:
-
3H 3-Jaws Power Chuck - Open Center
-

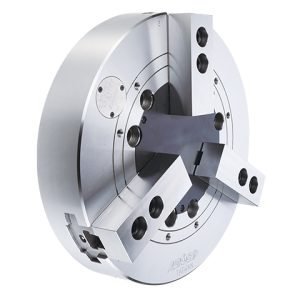

3P 3-Jaws Power Chuck - Close Center
-
2H 2-Jaws Power Chuck - Open Center
-
2P 2-Jaws Power Chuck - Close Center
-
4H 4-Jaws Power Chuck - Open Center
-
3L 3-Jaws Power Chuck - Long Stroke / Open Center
-
3M 3-Jaws Power Chuck - Long Stroke / Close Center
-
TK-Series Open Center Hydraulic Cylinder
-
RH-Series Close Center Hydraulic Cylinder
-
RA-Series Close Center Air Cylinder
